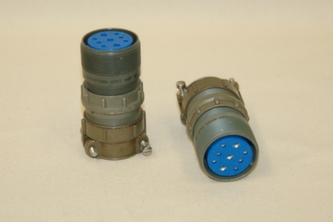

MS3101A24-11S
|
|
Price
|
| This is the receptacle that installs on the belly of the aircraft to provide power and control wiring to external loads, such as Bambi Buckets. Required for carded helicopters. |
|
|
|
|

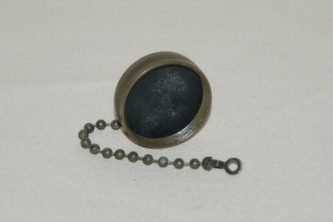

MS3101A24-11S/DC
|
|
Price
|
| Dust cap that fits the 9-pin belly receptacle or box receptacle. |
|
|
|
|

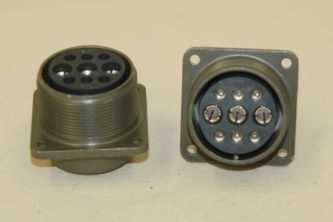

MS3102A24-11S
|
|
Price
|
| Mounts on aircraft bulkhead or skin for special application installations. |
|
|
|
|

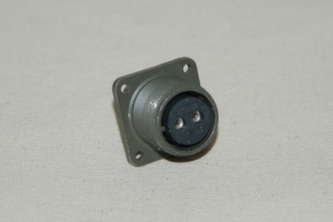

MS3102R16-11S
|
|
Price
|
| Mounts on bulkhead, etc. to provide power for optional items, such as rotor tracking equipment, GPS, etc. Note: Standard wiring for this receptacle is B=28VDC, A=GND. |
|
|
|
|

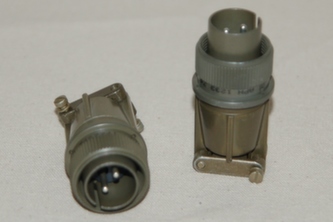

MS3106F16-11P
|
|
Price
|
| Install on your equipment to mate with receptacle above. |
|
|
|
|

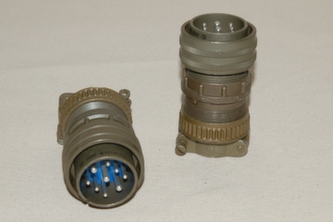

MS3107A24-11P
|
|
Price
|
| This is the friction fit (collar has an internal spring and is NOT threaded) plug that connects external
load wiring to the aircraft for Bambi Buckets, HeliTorch, long lines, etc. Mates with 9-Pin Belly Receptacle above. |
|
|
|
|

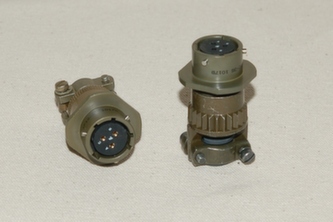

MS3111F12-3S
|
|
Price
|
| This receptacle is attached to wiring that supplies 14 or 28 volt DC power. It mates with the MS 3116F12-3P and can be used to make power cord extensions for the aircraft power outlet or to wire a power supply for ignition machine testing in the shop. |
|
|
|
|

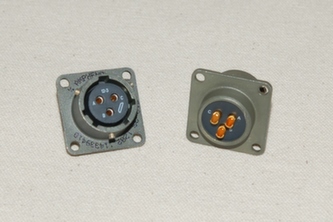

MS3112E12-3S
|
|
Price
|
| Mount on helicopter bulkhead, etc. to provide 14 or 28 VDC power for equipment. |
|
|
|
|

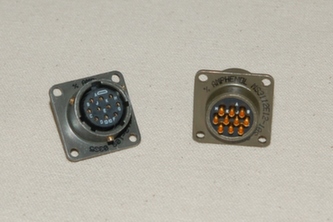

MS3112E12-10S
|
|
Price
|
| Mount in aircraft in conjunction with audio system for connection of all handheld AUX cables. |
|
|
|
|

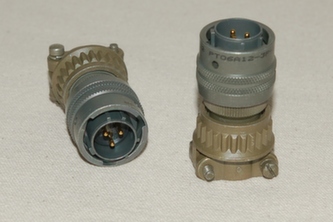

MS3116F12-3P
|
|
Price
|
| This plug is installed on equipment that needs power inside the aircraft such as aerial ignition machines, foam injectors and hand held infrared detectors. |
|
|
|
|

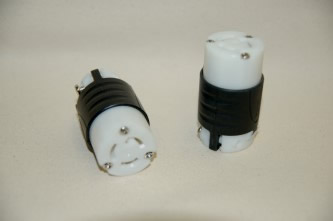

L515-C
|
|
Price
|
Female twist-lock connector for wiring long lines IAW IHOG specs. |
|
|
|
|

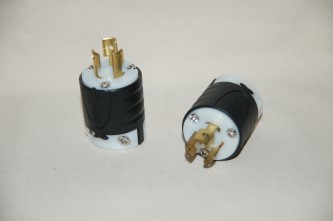

L515-P
|
|
Price
|
| Male twist-lock connector for wiring long lines IAW IHOG specs. Also commonly used on Bambi Buckets, etc. Mates with FSS-NEMA-9P (below) to connect to ‘carded’ helicopters. |
|
|
|
|

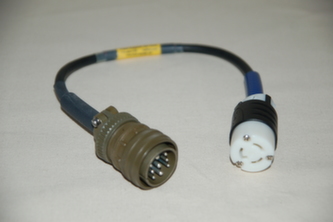

FSS-NEMA-9P
|
|
Price
|
| Adapts twist-lock connector (commonly used on Bambi Buckets and long lines per IHOG specs) to the helicopter nine pin connector installed on ‘carded’ helicopters. Has MS3107A24-11P on one end and L515-C on the other end. Both connectors shown above. |
|
